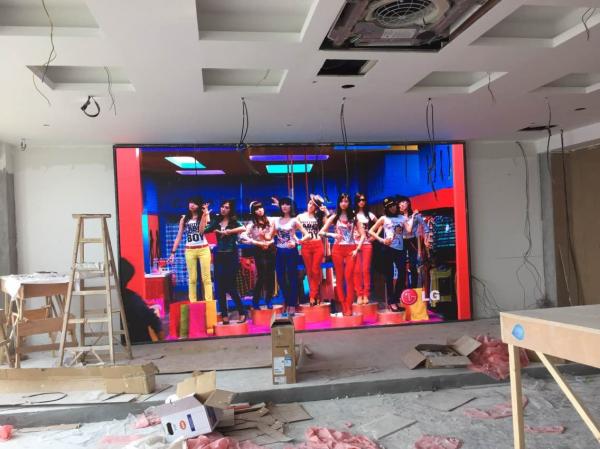

Indoor advertising P1.923 LED display LED Billboard panel Module Size 200x150mm
Introduction:
1. Indoor full color LED large screen series,ultra high pixel density, showing a more high-definition picture effect.
2. High cost performance, to meet your demand of high definition picture also has a good price, greatly reduce your investment costs;
3. High efficiency : large LED screen products is used super bright low power driven LED, saving more than 20% , the PFC circuit design with temperature control, display control, brightness control technology, can achieve energy-saving effect on the whole product;
4. High protection level: unique case design, in line with IP protection standards, can be used for outdoor installation;
5. Standardized design: case, module and other parts of the standardized design, the compatibility between different products, high degree of standardization, for the production and maintenance to provide great convenience;
Advantages
Special heat dissipation design inside out led chip;
Great heat dissipation ability inside out from Drive IC;
Model cover and cabinet adopted die-casting aluminum material Improves the heat dissipation effect, and Drive IC is accompanied with cooling material outside;
Plus the high efficient power supply can decrease heat output;
Specifications :
| Intdoor SMD P1.923 |
| Resolution/mm | 1.923mm |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m² | 270420/m² |
| Module resolution | 104x78 |
| Module size/mm | 200x150mm |
| View distance | 2-80m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >1000cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 16bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km |
| Driving mode | Constant driving current |
| Scanning mode | 1/42 SCANNING |
| Frame rate | 60Hz |
| Refresh frequency | >3000Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted |
| 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ |
| Self-check technology | LED spot self-check, communications check, power check, |
| temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, |
| send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
